Rudder seal replacement...new style without grease zerk

Alright guys,

Many have been talking to me about topics and I chime in trying to help where I can. Many of you have helped me already and hopefully this helps someone else.

First, be thanks to SEF for sending me o-rings for this job, but they could be found elsewhere. I posted the dimensions in another thread.

Secondly, it appears the rudder port box is common among a large amount of rudders from SC. I verified my part number through my dealer for the whole rudder kit (115203). Newer boats use 117072 but the port box is the same.

First off, make sure your bags are empty before pulling them out. Mine still had 10-12 gallons and made a nice pool for me to work in. Only have to pull the port bag but I pulled both engine dividers for my shop light.
Attachment 29822

Next, I was lucky enough last outing to get the boat on the trailer far enough forward to remove the rudder. You could let it hang 4" back to accomplish the same thing. I have seen jacking the hull to clear also, but I never had a problem.

The hardest part is the SS cotter pin. There is no room to work and it does not want to be straight again. Once I donated blood to the mechanic gods it came right out.
Attachment 29821

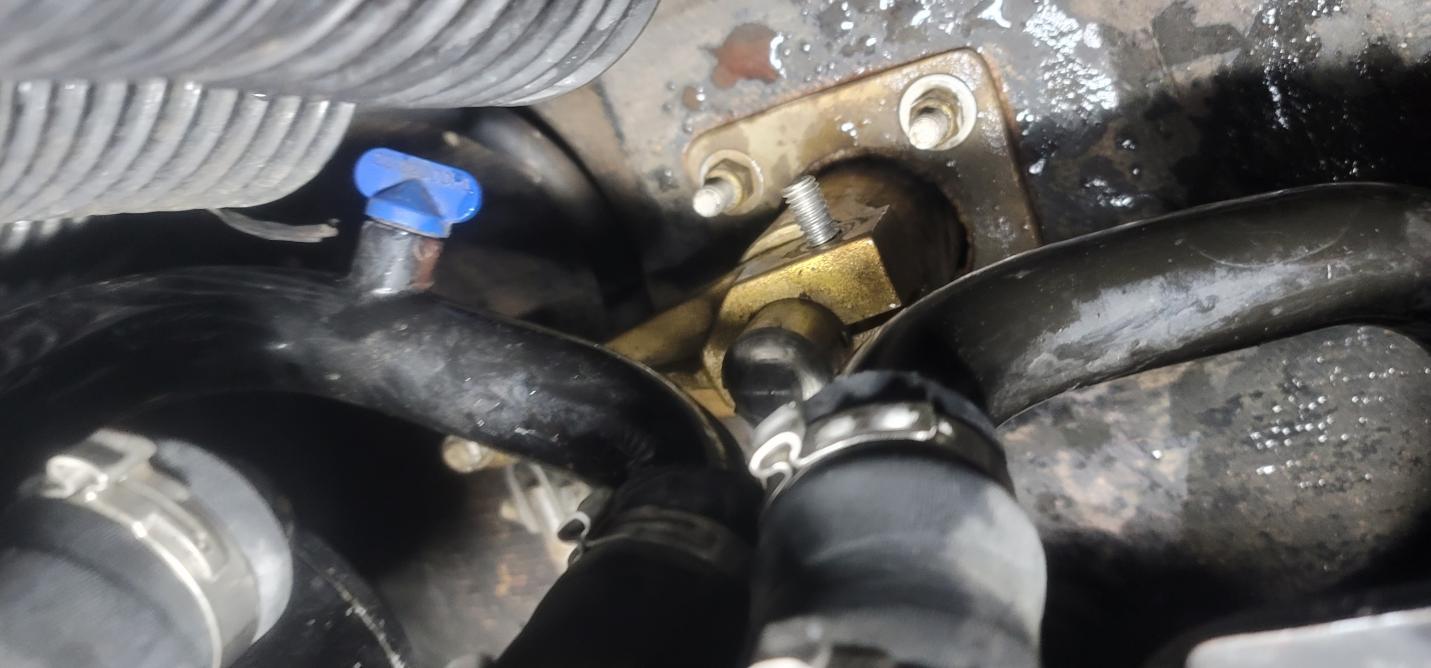

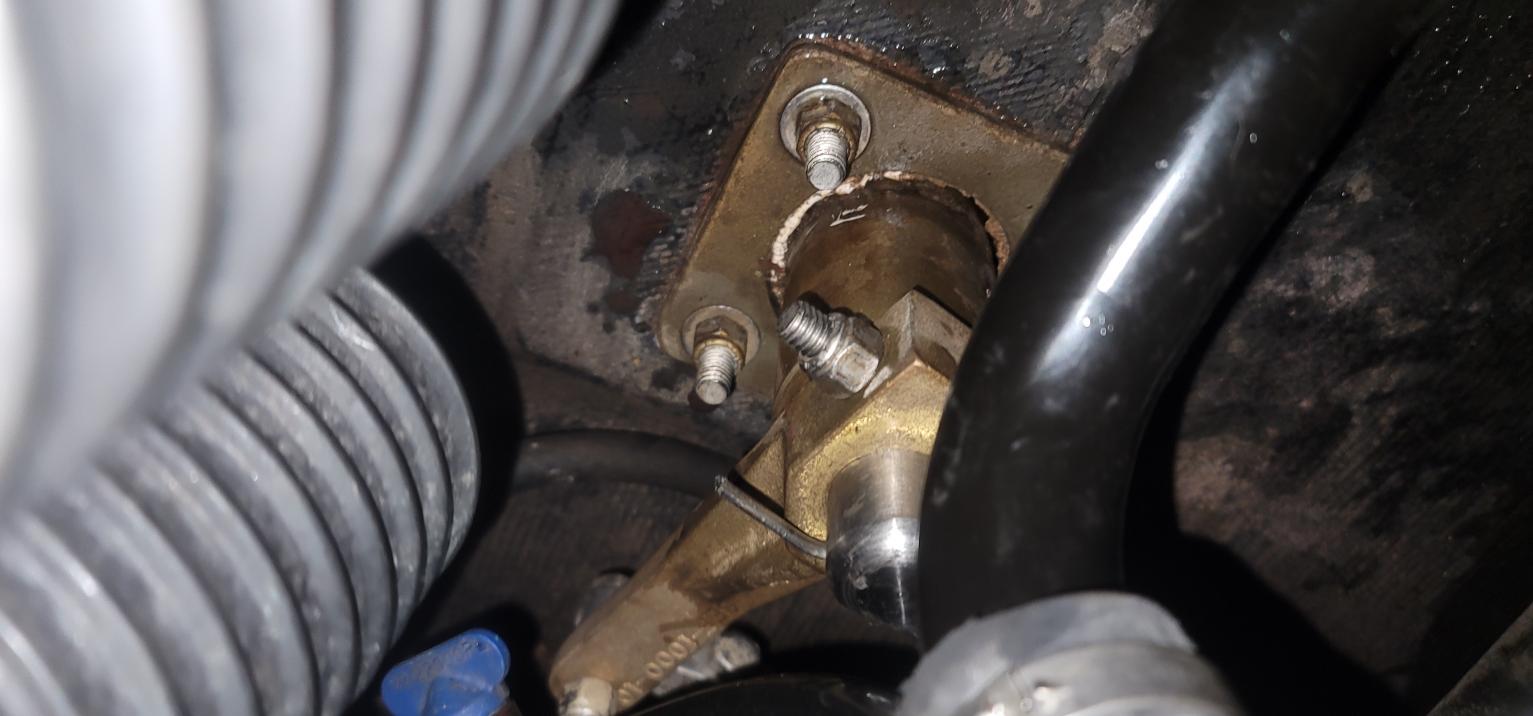

Once removed, te nut and bolt for the tiller arm is straight forward. They are stainless and non-magnetic, DO NOT DROP THEM.
Attachment 29823

The tiller arm will release and the rudder will fall pretty easy once the boltnis removed. My dad came over to help and held the rudder and lowered slowly while I made surebthe tiller arm and key stock didn't fall under the engine. Once secured, he turned the rudder and pulled right out.

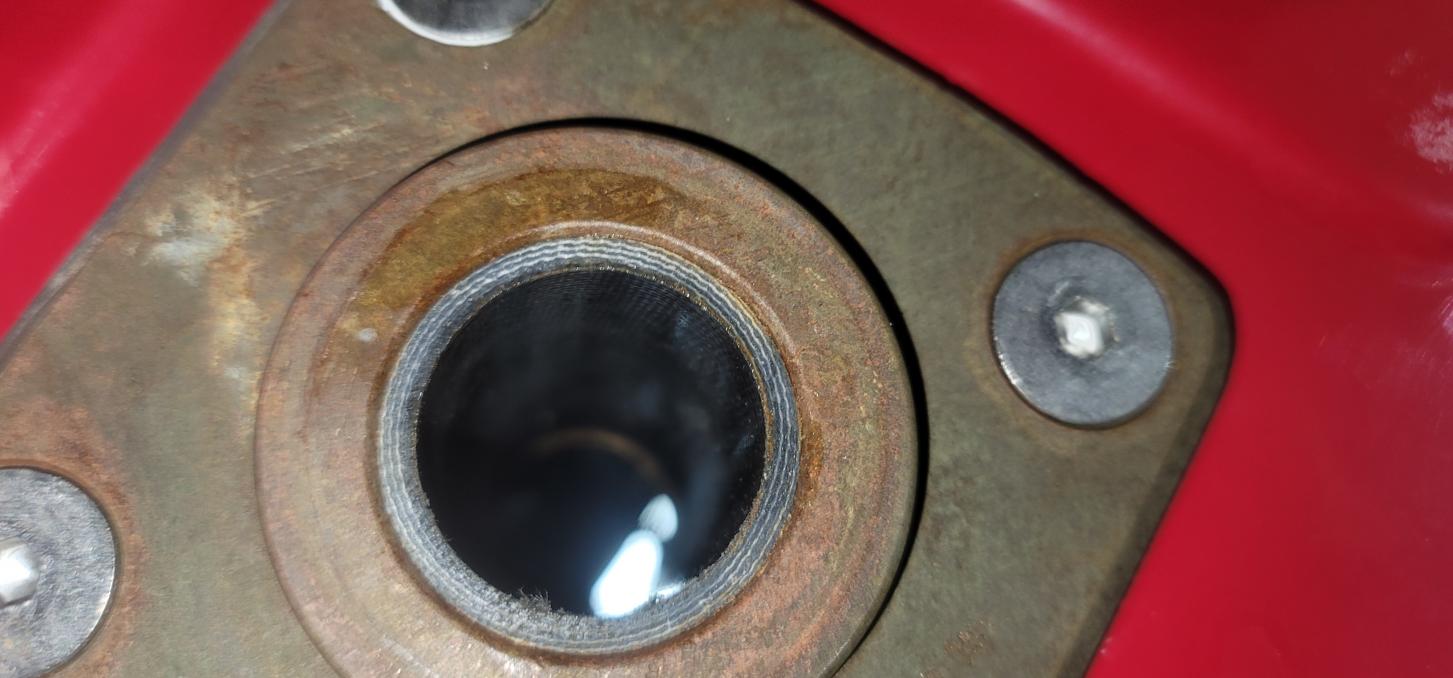

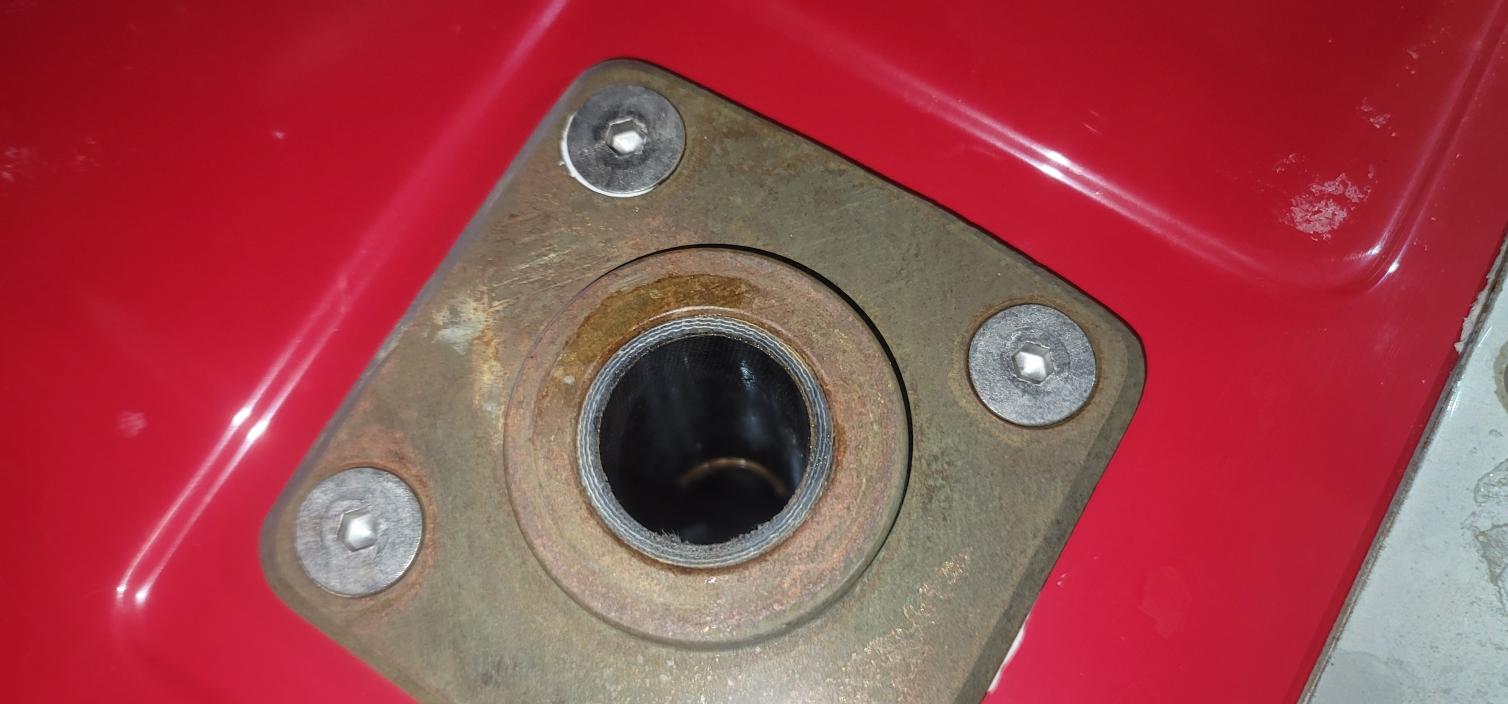

Port box only has 1 O-Ring at the top. The rest is sleeved with a carbon liner (yes $0.50 o-ring = sunk $80k boat), I was shocked also.
Attachment 29824
Attachment 29825

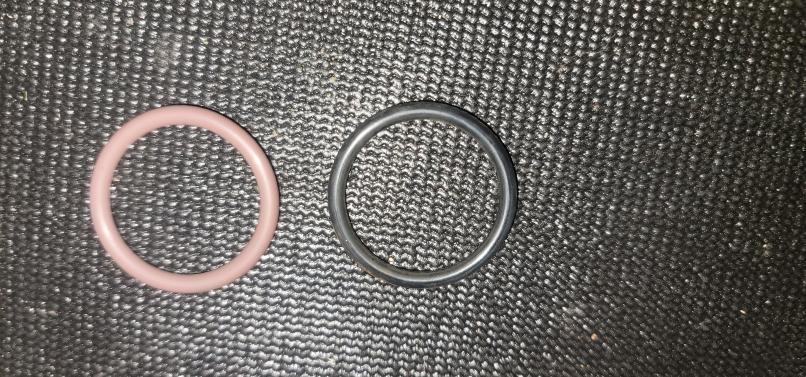

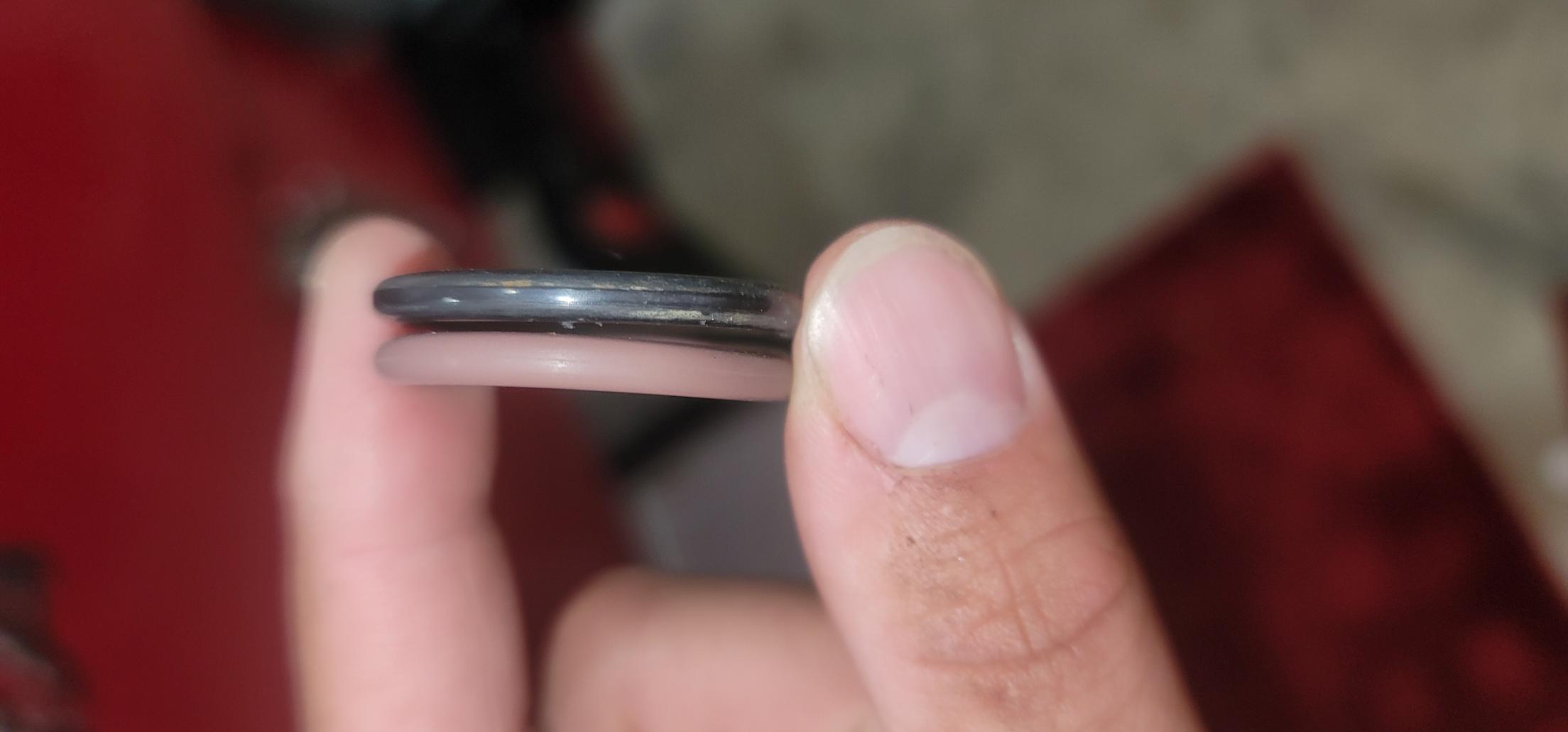

Old o-ring (black) vs new
Attachment 29826
Attachment 29827

I used marine silicon spray lube to work the o-ring in from topside. Really simple from there. Just feel around to make sure it seats in the machined groove on the inside of the port box. I then sprayed the rudder shaft and had my dad insert it slowly to not dare the new seal.
* You have to install the tiller arm at the same time the rudder is being inserted.*
It slide right on but I wanted to make sure everyone knew this is a 2 person job. They key stock is a little tricky to hold and maneuver with 1 hand but go slow. Once on amd key in position push down on the tiller and push up on the rudder at the same time until both bottom out. Then re-insert the 3/8" bolt (took some wiggling) and tighten everything up.

I reused the cotter pin but that is up to you. Again, this was a pain to bend once I got it through the rudder shaft.

All and all, a 2 beer job (with help). Took 1.5hrs without any prior experience. If I have a problem again, I will be forced to replace the port box, or upgrade the rudder kit to a rebuildable one. I still have play in the rudder but definitely reduced.
While there lube tje steering shaft also. I sprayed some silicon spray and worked it in by turning a few times. Didn't need it but I was already there with tools, so why not?

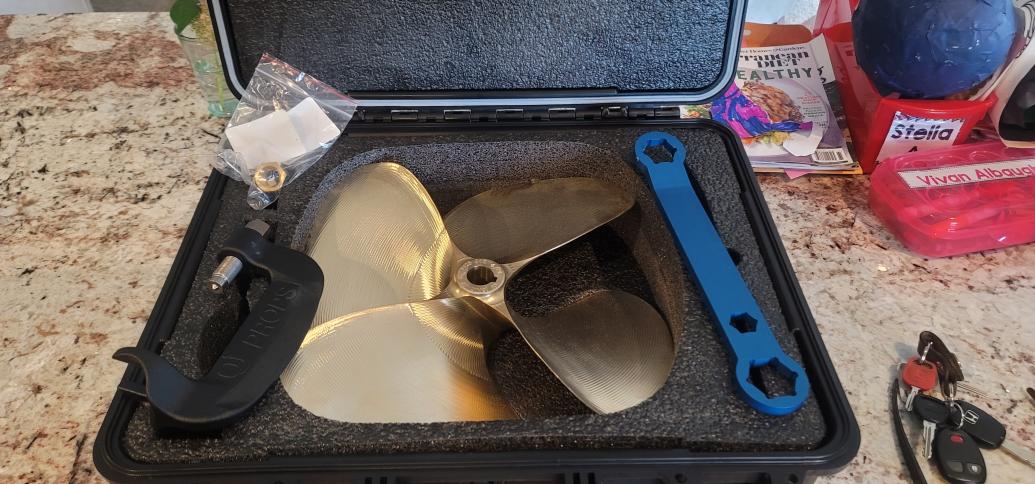

I had extra time so I threw on my new OJ945 prop also. Cannot wait to check my work at the lake. Hopefully tomorrow.
Attachment 29828

Awesome. Thanks for the write up. Wish they would use a rebuildable rudder to ease of servicing. Would it be possible to coat the rudder shaft and sleeve with lithium marine grease or would it be pointless?


Sent from my iPhone using Tapatalk

I'm sure it would help. Not sure how long it would last. Water is not stopped from coming into the rudder port. The o-ring just stops the water from coming into the boat.

The rebuildable version has 2 seals that stop water from entering and keep grease in place. I will swap to this if I continue to have problems.

Really good photos and procedure writeup. Were there any splines or markings that you used to make sure the rudder went back onto the tiller arm in the same position it came off? And yes that single o-ring has a big job with no backup!

Sent from my moto z4 using Tapatalk

The tiller arm is keyed to the rudder shaft. No way to mess that up. I also greased the steering cable with the rudder out. I never took the steering cable off the tiller.
