Ok guys I have been running tsumani 1200gpm pumps that I have had a ton of priming issues ect. I want to make the jump to reversibles. Currently I have a single 1-1/4 thru hull and I am thinking that I can run two pumps off of that and install another 3/4 for the third. Am I going to have enough flow through the 1-1/4 to support two pumps?
Somewhere during my rebuild, I found information to support running two impeller pumps on a single 1-1/4 intake - so I did. Seems to work fine with all 1" fill and 3/4" vent hoses.
I think you're better off with a thru hull per pump with reversibles.
Multiple impeller pumps on a single intake does work, but over time you will see more wear on the impellers and pumps. With this said if it were an optimal solution, MasterCraft wouldn't have scrapped the system configuration after 2006.Quote:
Originally Posted by sybrmike
We do prefer that customers do it right the first time which will minimize any chance of a system problem long term.Quote:
Originally Posted by wolfeman131
If you look for my posts I set this up on a 1 inch thru hull and posted all the results look for the post it goes over the fill time differences. Bottom line it does take longer with 2 pumps on a single thru hull fitting but its not a ton of time. I am doing the same upgrade and decided to go with one port per pump. Spencer sold me everything through wakemakers.
come on over. I love to drill holes in boats :)
as they say... silicone shmilicone... fox river isn't that deep so it won't sink far if it does.
I'd be more interested in the root cause of the priming issue?
^^ What he said. Priming on fill or drain pumps?
Both. SandM and Berg both of you guys have considerably more room under floor to mount pumps. That is my biggest issue is that I have a really difficult time getting all three of the tsunami's under water level. I've fought it for two years now and I am ready to scrap it. Worse case I have some extra pumps for a bow sack, surf sack, ect.
I want to do this too but I want detailed pictures of a boat that came with this set up factory. Pics of the thru hulls from inside the boat and outside, where the pumps are mounted, and how the hoses are routed
Ok guys as soon as I get the WM code I am placing my order. I am going to run the two rear pumps on the 1.25" and the locker / ibs on a second .75".
wait a minute.. weren't you doing this over the long weekend? :)
Haha I wish, I had to help my parents put build there outdoor bar. Wire all of the speaker ect. I finally got to work on the boat yesterday and I gutted the ballast system. I was so pissed at screwing around with it. The good news is that it is still raining. I'm still waiting to see that pink and blue 22ve.
Just sent you the new WM code on FB
Thanks guys.
I can't wait till this shows up on Monday!
Johnson Ultra Ballast Reversible Pump 23001 3
3/4" Bronze Mushroom Thru-Hull Intake 35001-340 1
3/4" Bronze Ball Valve 35003-340 1
3/4" Thread x 1" Hose Barb Elbow 32025 1
1" Stainless Steel Crimp Band Clamp 31004-100 10
3/4" Stainless Steel Crimp Band Clamp 31004-340 5
Crimp Clamp Tool 37009 1
it's coming out of dormancy saturday morning. moving friday night and going to clean out the storage unit sat morning.Quote:
Originally Posted by New Guy
that is unless it's pouring, then sometime over the weekend.
still has the transport cover on. I can't wait to take it off and see how the graphics came out ;)
So we'll be out on your boat before mine.
Said it was going home not to water. :)
U wanna come help unpack house then sure...
2 weeks i think.
My pbc cleaners showed up. Ballast parts come Monday. Hopefully by Wednesday it's ready to go.
Sent from my SCH-R970 using Tapatalk 4 Beta
http://img.tapatalk.com/d/13/06/06/eqabuqa4.jpg
Pumps are mounted. They are plumbed and wired just not cleaned up in this picture.
Sent from my SCH-R970 using Tapatalk 2
Thats a lot of Hoes i mean hose in your boat LOL
I agree too many hoes. All 1" feeds and bag supplies. Switched come tomorrow.
all the better to fill the regular side with :)
If by regular you mean right then yeah.
yeah.. the "right" side which is left :)
http://img.tapatalk.com/d/13/06/09/dehe5u4u.jpghttp://img.tapatalk.com/d/13/06/09/nesuvage.jpg
Sent from my SCH-R970 using Tapatalk 2
I love the pumps but man to they draw a ton of amperage. Does anybody else have that problem?
Nope! ;) Oh wait, you gave up and went reversibles...
Yup and so far they are much more dependable. They just suck the amps no priming issues at all!
And blow a lot of fuses... :)Quote:
Originally Posted by New Guy
No 25amp fuses take care of it:p
Yea, No, Started with 20s, then 25s, now moving to 30s... :)Quote:
Originally Posted by New Guy
Seems to help if you fill them to the fill position at the end of the day for a second...

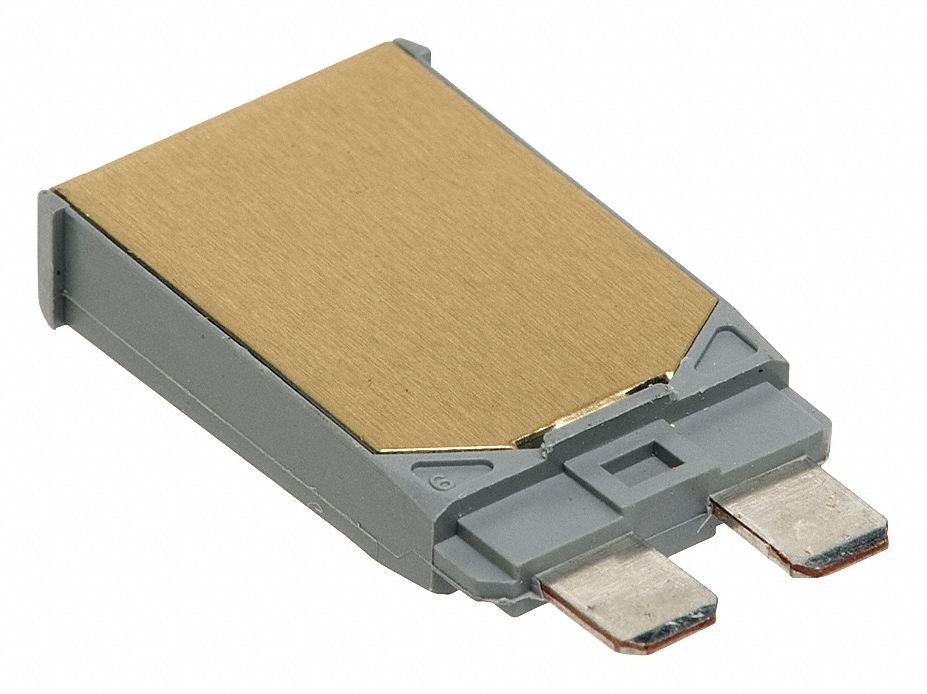

Get these they act like an automatic circuit breaker.
http://www.grainger.com/Grainger/COO...-Breaker-5KDN2
http://imageserver.grainger.com/is/i...productdetail$
Do they trip and then reset?
Sent from my Nexus 4 using Tapatalk 2
Yup
Stay awesome!
Thanks
