07 LSV Trim Tab indicator and actuator question

Just completed an upgrade to a '22 MOJO (pretty pumped) and I'm fixing a few odds and ends on my 07 before selling. I finally tracked down the correct actuators on the wake plate from bennett and they're installed and working. However, I need wiring information on the gauge! I cut the wire several years ago when I installed the wrong actuators so I don't remember how they were wired.

From the Guage to the transom, there is a wire with a bare wire, and two greens.
The actuator has black and red.
Behind the guage the bare is connected to common ground.

I'm assuming one green to each of red and black to make a circuit and the bare wire is just for the guage up front?

TIA!

Replying to myself! Ha! There was a ground in the actuator wires. I hooked ground to ground then each of the greens to red and black. That got the guage working, but not properly. Only get half the indicated range even though the actuators are fully actuating.

Can anyone out there still running this era of boat lend the assist? Would be helpful to see how the actuator is wired into the wires that run back to the gauge.

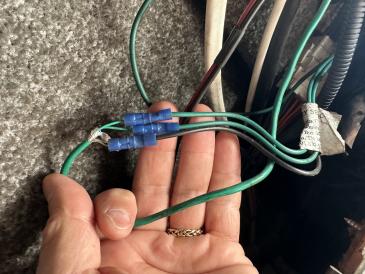

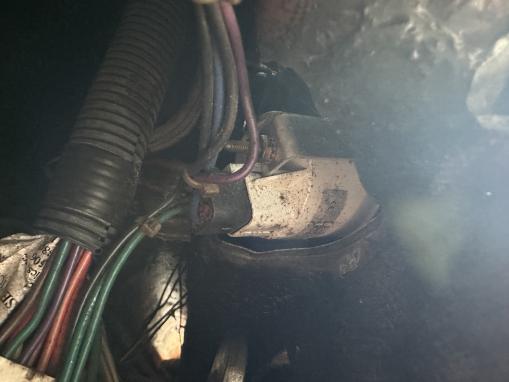

Attachment 31043Attachment 31044
That’s what the back of my gauge looks like. The large green wire with two small green wires connect to the green wires in the plug and the bare connects to a black that goes somewhere else.

Quote:

---

Originally Posted by Leebo

Attachment 31043Attachment 31044
That’s what the back of my gauge looks like. The large green wire with two small green wires connect to the green wires in the plug and the bare connects to a black that goes somewhere else.

---

Thanks, appreciate it!
